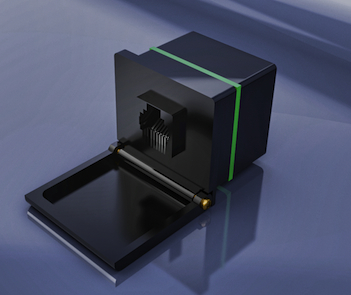

- The RJ45-B Data Port is constructed to aircraft industry quality standards. The unit is provided with a universal mounting bracket clamp and the required mating connector installation kit.
- The unit has an integral spring loaded lid that protects the Ethernet Data Port from moisture and damage. The lid will automatically close when the outlet is not being utilized.
- Ethernet Modular Jack conforms to FCC regulations part 68 and REA Bulletin 345-81, PE-76 Specification.
- Operating temperature rated at -40° to +85°C.
- The RJ45-B data port assembly is machined from aircraft quality 2024-T3 aluminum and anodized in accordance with MIL-A-8625 for corrosion protection.
- The interconnect cable is M22759/16 aircraft wire terminated with M39029/64-369 contacts and a standard 9 contact D-subminiature connector and strain relief with female screw locks.
- The RJ45-B assembly is provided with an aircraft mating connector kit consisting of contacts, connector, male screw locks, and strain relief.
